High precision
at a fair price

The fully integrated high precision GNSS receiver
enables the TOUGHBOOK G2 to use our RTK GNSS
solution for satellite positioning with submeter accuracy.

PWA_G2_RTK G2_RTK GNSS
G2 PWA RTK GNSS G2 PWA RTK GNSS

Facts

  • Supports all major GNSS systems:
    GPS, GLONASS, Galileo, Beidou and QZSS
  • Data export: NMEA
  • Fast cold start initialisation time:
    25 s – 30 s (depending on satellite usage)
  • Initialisation time for repositioning: 2 s
  • No connection via Bluetooth etc. required
  • IP65 protection is maintained after installation of the antenna, thanks to a custom-fit sealing system.
  • Your TOUGHBOOK G2‘s warranty remains unaffected by the modification.

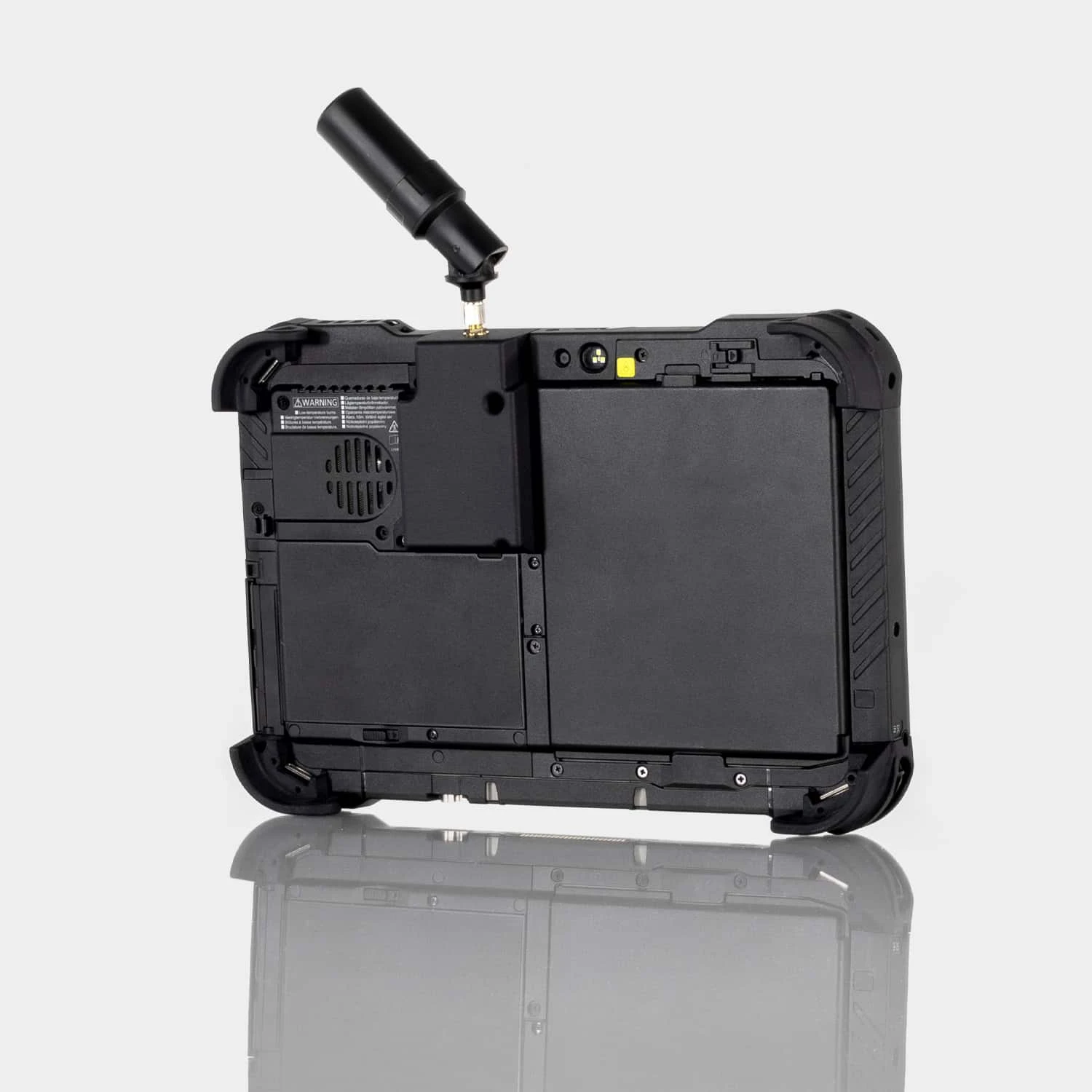

  • Rotatable and bendable antenna, an overhead antenna is available as an option.
  • Windows 11 Pro

Performance

Horizontal positioning accuracy:

  • RTK 0.01 m + 1 ppm CEP
  • PVT 1.5 m CEP
  • SBAS 1.0 m CEP
  • SPARTN <0.06 m CEP (GPS+GLO+GAL)
  • CLAS 0.04 m CEP (GPS+GLO+GAL)

Vertical positioning accuracy:

  • RTK 0.01 m + 1 ppm R50
  • PVT 2.0 m R50
  • SBAS 1.5 m R50
  • SPARTN <0.12 m R50
  • CLAS 0.08 m R50

Dynamic price accuracy:

  • 0.3 deg

Sensitivity:

  • Tracking and navigation (-167 dBm)
  • Signal recovery (-160 dBm)

Recognition time:

  • RTK < 10 s

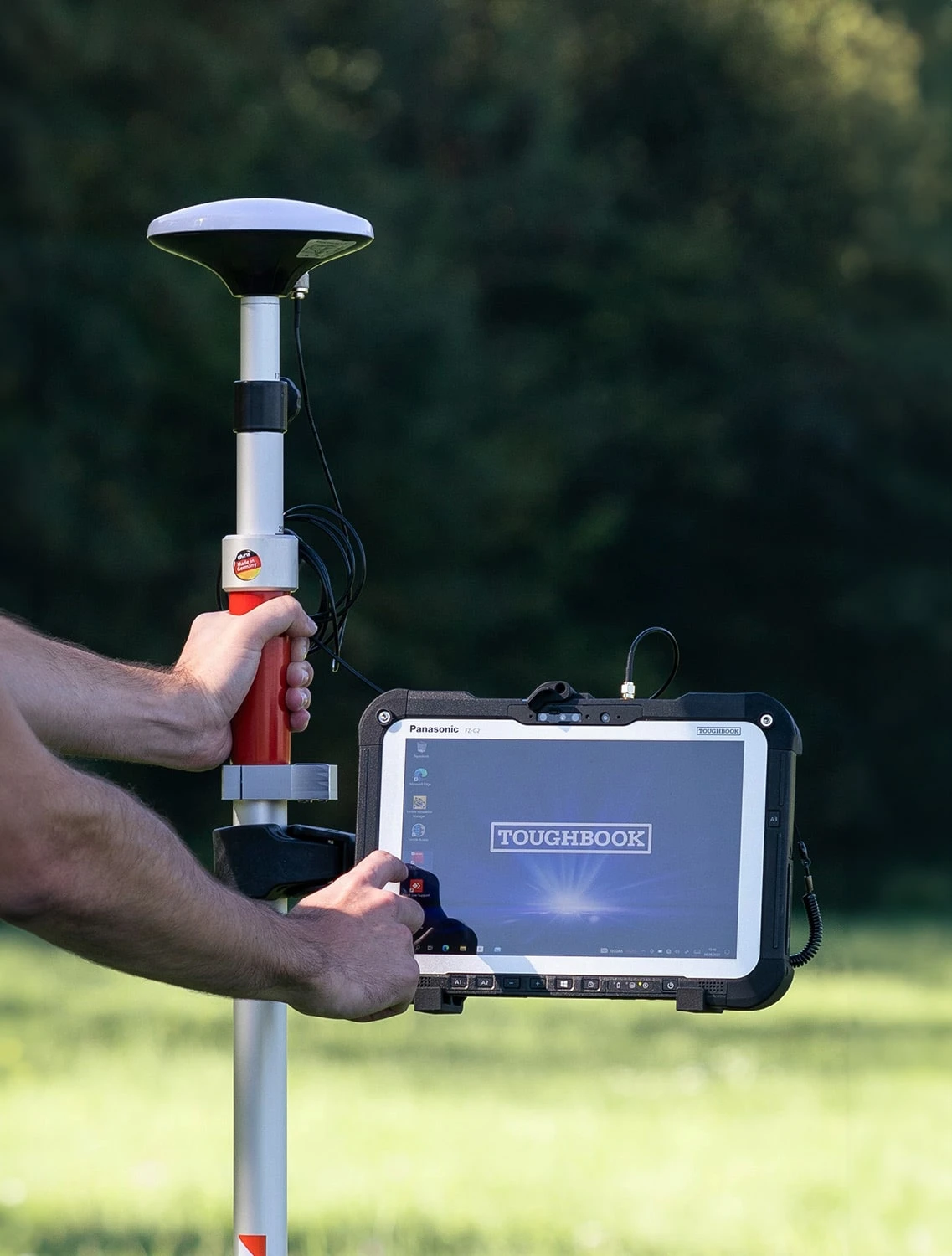

G2 PWA GNSS Anwendung G2 PWA GNSS Anwendung
